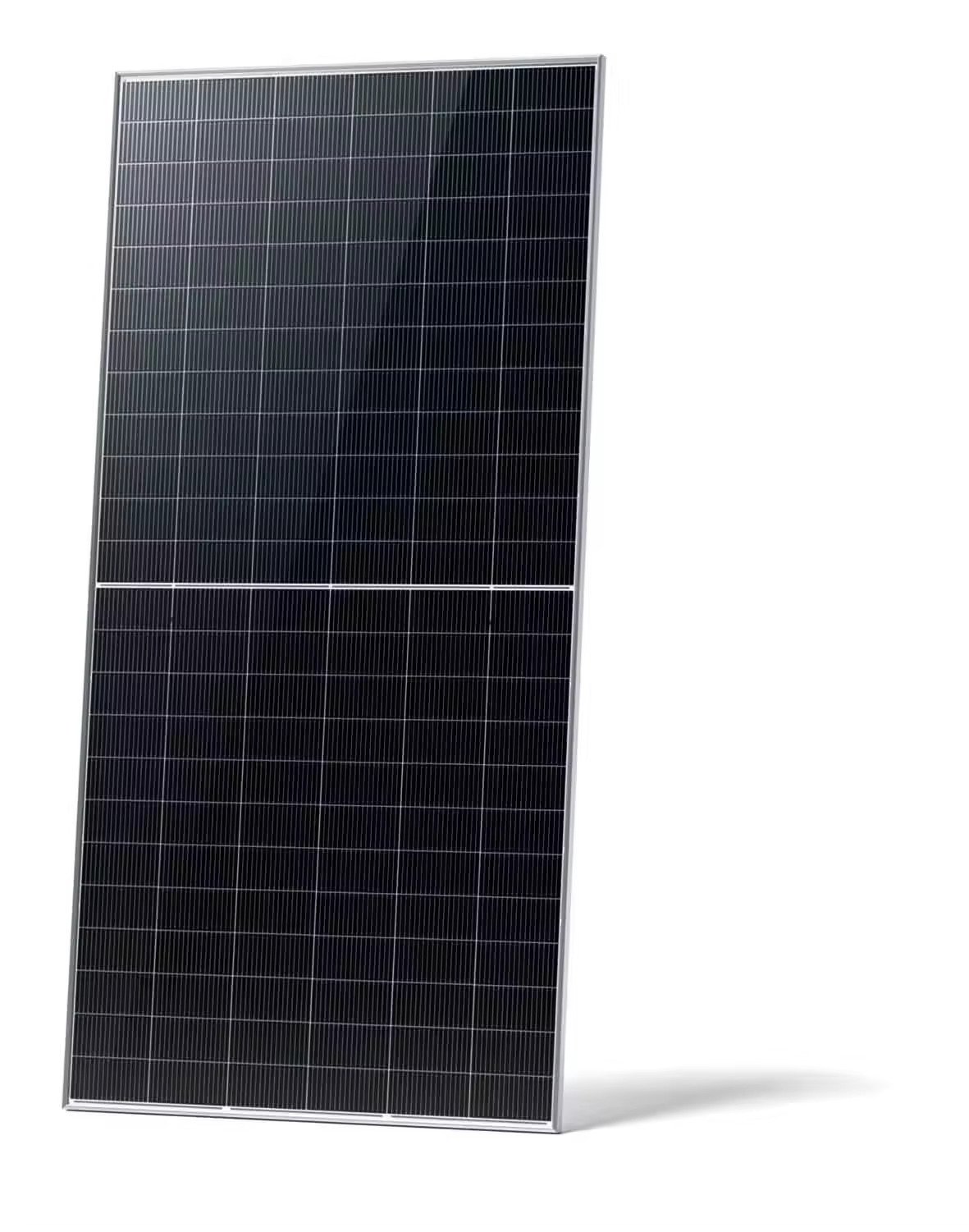

JinkoSolar Tiger Neo 710W–735W N-Type Bifacial Dual Glass Solar Module
The JinkoSolar Tiger Neo 66HL5-BDV series is a high-power N-type monocrystalline bifacial dual-glass photovoltaic module designed for large-scale solar power applications. With rated power options from 710W to 735W, this series offers high module output and efficiency for project developers, industrial energy users, solar EPC contractors, and wholesale solar equipment suppliers.
The series uses N-type TOPCon cell technology, JinkoSolar HOT 3.0 technology, and SMBB technology. Its bifacial design can capture additional solar energy through the rear side of the module when the mounting arrangement and site conditions provide suitable illumination. This can improve overall energy yield and project economics, but the actual gain depends on installation design and environmental conditions.
The module provides efficiency ratings from 22.86% to 23.66%, a 1500V DC maximum system voltage, an IP68-rated junction box, and a dual-glass structure consisting of 2.0 mm anti-reflection-coated front glass and 2.0 mm heat-strengthened rear glass.
The datasheet specifies a 12-year product warranty, a 30-year linear power warranty, 1% first-year degradation, and 0.40% annual degradation over the remaining warranty period as shown in the manufacturer warranty graphic. Its listed mechanical load ratings are 5400 Pa on the front side and 2400 Pa on the rear side.
The Tiger Neo 66HL5-BDV series is worth evaluating for large industrial rooftop installations, commercial solar power plants, and utility-scale PV projects where module dimensions, structural loading, inverter compatibility, and system design are carefully assessed.
Available models
- JKM710N-66HL5-BDV — 710W
- JKM715N-66HL5-BDV — 715W
- JKM720N-66HL5-BDV — 720W
- JKM725N-66HL5-BDV — 725W
- JKM730N-66HL5-BDV — 730W
- JKM735N-66HL5-BDV — 735W
Key features
-
High-power 710W–735W output: Six rated-power options.
-
N-type TOPCon cell technology: Designed for low light-induced degradation and improved low-light performance, as described by the manufacturer.
-
HOT 3.0 technology: Manufacturer-stated reliability and efficiency enhancement.
-
SMBB technology: Improves light trapping and current collection.
-
Bifacial dual-glass design: Supports rear-side power generation when installation conditions allow.
-
High module efficiency: 22.86%–23.66%.
-
Positive power tolerance: 0~+3%.
-
1500V DC maximum system voltage.
-
IP68-rated junction box.
-
Maximum series fuse rating: 35A.
-
Mechanical load rating: 5400 Pa front-side and 2400 Pa rear-side maximum static test load.
-
Warranty stated in datasheet: 12-year product warranty and 30-year linear power warranty.
-
Low degradation stated by manufacturer: 1% first-year degradation and 0.40% annual degradation over 30 years.
Technical specifications
| Specification | JKM710–735N-66HL5-BDV series |
|---|---|
| Brand | JinkoSolar |
| Product series | Tiger Neo |
| Cell technology | N-type monocrystalline TOPCon |
| Module construction | Bifacial dual glass |
| Available rated power | 710W, 715W, 720W, 725W, 730W, 735W |
| Module efficiency | 22.86%–23.66% |
| Maximum power voltage (Vmp) | 40.65–41.23V |
| Maximum power current (Imp) | 17.47–17.83A |
| Open-circuit voltage (Voc) | 48.73–49.52V |
| Short-circuit current (Isc) | 18.53–18.88A |
| Maximum system voltage | 1500V DC |
| Maximum series fuse rating | 35A |
| Power tolerance | 0~+3% |
| Temperature coefficient of Pmax | −0.29%/°C |
| Temperature coefficient of Voc | −0.25%/°C |
| Temperature coefficient of Isc | +0.045%/°C |
| Operating temperature | −40°C to +70°C under the stated application conditions |
| Number of cells | 132 (66 × 2) |
| Dimensions | 2384 × 1303 × 33 mm |
| Weight | 37.5 kg |
| Front glass | 2.0 mm, anti-reflection coating |
| Rear glass | 2.0 mm, heat-strengthened glass |
| Frame | Anodized aluminium alloy |
| Junction box | IP68 rated |
| Protection class | Class II |
| IEC fire type | Class C |
| Connector type | JK03M/JK03M2/others, as specified |
| Warranty stated in datasheet | 12-year product; 30-year linear power |
