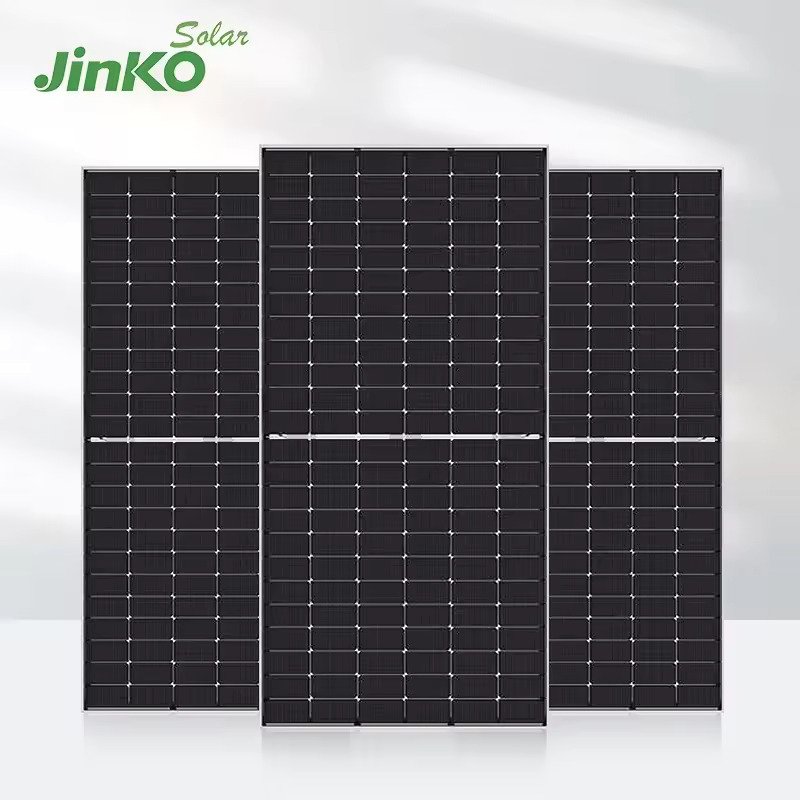

JinkoSolar Tiger Neo 605W–625W N-Type Bifacial Dual Glass Solar Module
The JinkoSolar Tiger Neo 78HL4-BDV series is a high-power N-type monocrystalline bifacial solar panel series designed for commercial and industrial solar power generation. With rated power options of 605W, 610W, 615W, 620W, and 625W, the series offers multiple configurations for engineers, solar EPC contractors, project developers, and wholesale solar equipment buyers.
The module uses bifacial dual-glass construction, allowing both the front and rear surfaces to contribute to electricity generation when sufficient light reaches the rear side. The actual additional energy yield depends on the installation structure, mounting height, ground reflectivity, shading, and other site-specific conditions.
JinkoSolar’s SMBB and Hot 2.0 technologies are designed to improve module power output and reliability, while the N-type platform offers improved resistance to light-induced degradation mechanisms according to the manufacturer. The series also features anti-PID performance, an IP68-rated junction box, and a 1500V DC maximum system voltage.
With module efficiency ranging from 21.64% to 22.36%, positive power tolerance of 0~+3%, and mechanical load ratings of 2400 Pa for wind and 5400 Pa for snow, the Tiger Neo 78HL4-BDV series can be considered for industrial rooftop solar, commercial photovoltaic systems, and utility-scale solar projects.
Available models
- JKM605N-78HL4-BDV — 605W
- JKM610N-78HL4-BDV — 610W
- JKM615N-78HL4-BDV — 615W
- JKM620N-78HL4-BDV — 620W
- JKM625N-78HL4-BDV — 625W
Key features
-
605W–625W power range: Five rated-power options within the series.
-
N-type monocrystalline cells: Designed for high-power photovoltaic generation.
-
Bifacial dual-glass design: Supports front- and rear-side electricity generation.
-
SMBB technology: Improves light trapping and current collection.
-
Hot 2.0 technology: Designed to improve reliability and reduce LID/LeTID.
-
Anti-PID performance: Helps mitigate potential-induced degradation.
-
Module efficiency up to 22.36%.
-
Positive power tolerance of 0~+3%.
-
1500V DC maximum system voltage.
-
IP68-rated junction box.
-
Mechanical load ratings: 2400 Pa wind and 5400 Pa snow.
-
Manufacturer-stated warranty: 12-year product warranty and 30-year linear power warranty.
Technical specifications
| Specification | JKM605–625N-78HL4-BDV series |
|---|---|
| Brand | JinkoSolar |
| Product series | Tiger Neo |
| Cell technology | N-type monocrystalline |
| Module construction | Bifacial dual glass |
| Available rated power | 605W, 610W, 615W, 620W, 625W |
| Module efficiency | 21.64%–22.36% |
| Maximum power voltage (Vmp) | 45.42–46.10V |
| Maximum power current (Imp) | 13.32–13.56A |
| Open-circuit voltage (Voc) | 55.17–55.72V |
| Short-circuit current (Isc) | 13.95–14.27A |
| Maximum system voltage | 1500V DC |
| Maximum series fuse rating | 30A |
| Power tolerance | 0~+3% |
| Temperature coefficient of Pmax | −0.30%/°C |
| Temperature coefficient of Voc | −0.25%/°C |
| Temperature coefficient of Isc | +0.046%/°C |
| Nominal operating cell temperature | 45 ± 2°C |
| Reference bifacial factor | 80 ± 5% |
| Operating temperature | −40°C to +85°C |
| Number of cells | 156 (2 × 78) |
| Dimensions | 2465 × 1134 × 30 mm |
| Weight | 34.6 kg |
| Front glass | 2.0 mm, anti-reflection coating |
| Rear glass | 2.0 mm, heat-strengthened glass |
| Frame | Anodized aluminium alloy |
| Junction box | IP68 rated |
| Warranty stated in datasheet | 12-year product; 30-year linear power |
