Xuchang Chengrui Electrical Insulation Pressboard for Transformer

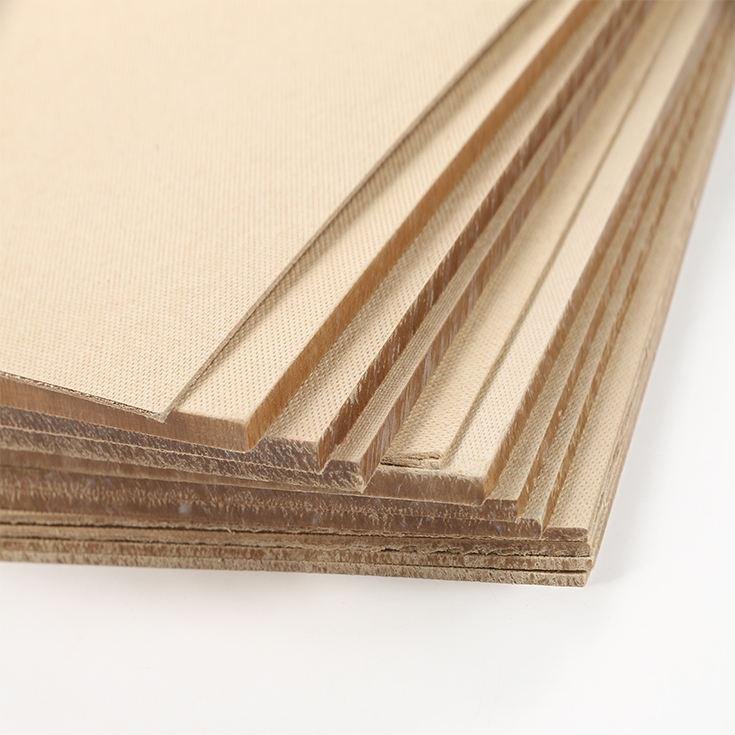

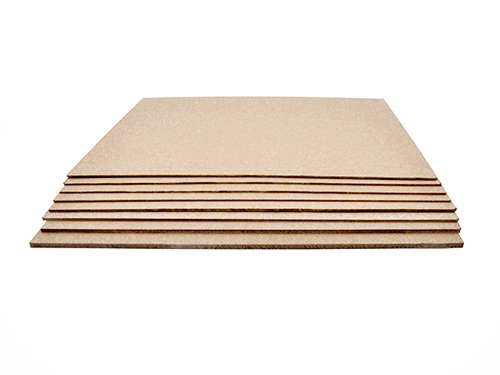

Electrical Insulation Transformer Pressboard is a specialized cellulose-based electrical insulation material designed for use in demanding electrical insulation applications.
This pressboard is manufactured from 100% sulfate pulp derived from long-fibred coniferous wood and formed into a dense fibrous structure without additional adhesive. Its high chemical purity, mechanical strength, flexibility and compatibility with liquid dielectrics make it suitable for transformer insulation applications.

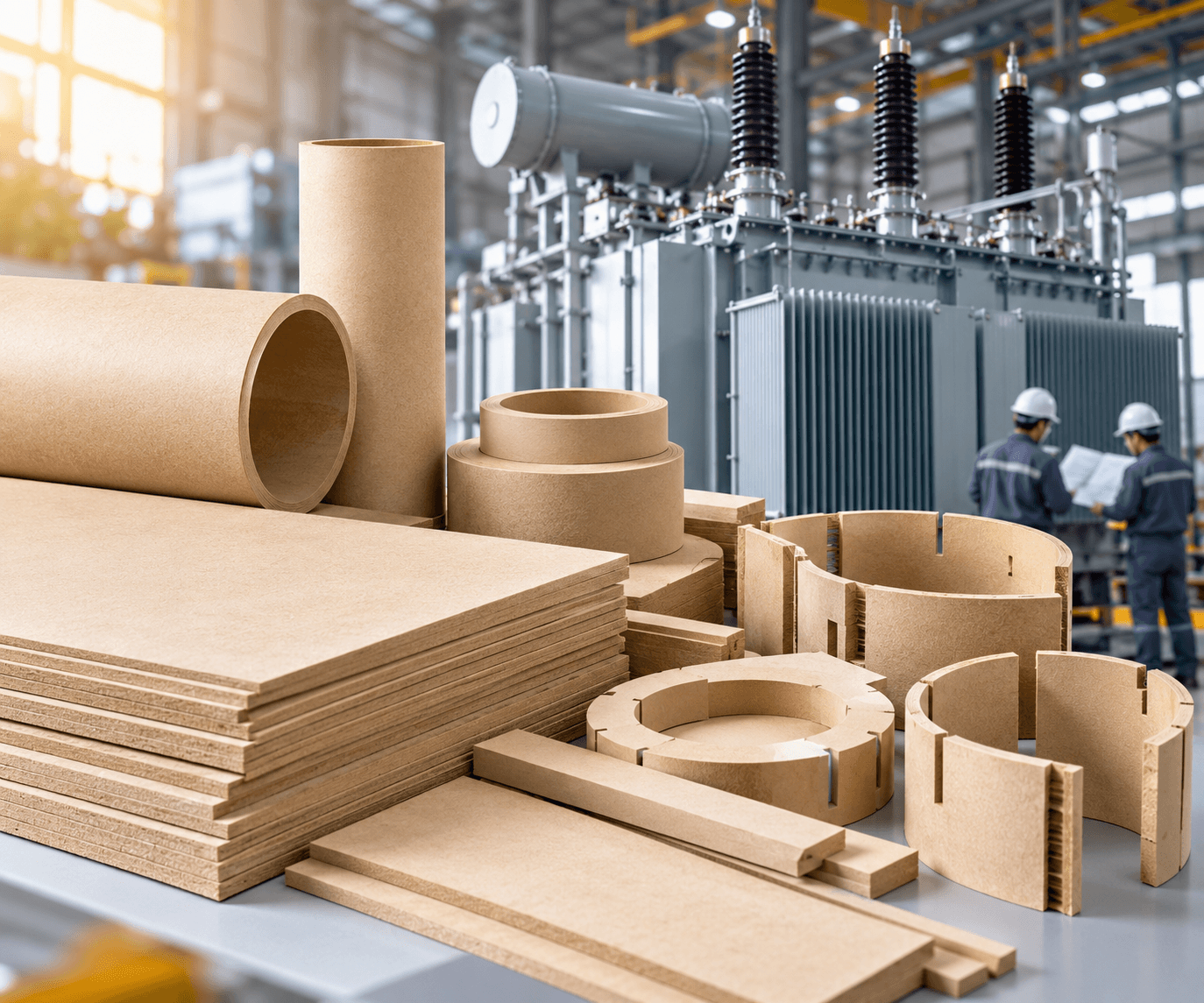

The material is primarily used as an insulation material in power transformers and distribution transformers. It can also be further processed into various transformer insulation components, including corrugated boards, cylinders, rings and mouldable parts.
Key Features
- 100% sulfate pulp construction
- High flexibility and softness
- High purity and mechanical strength
- Low shrinkage
- Good compatibility with liquid dielectrics
- Suitable for further processing
- Can be punched, folded, cut, and formed
- Available in multiple thicknesses from 0.8mm to 30mm
- Available in natural brown and red
- Class A insulation — 105°C
The supplier states that the product is manufactured in accordance with GB/T 19264.3-2003 / IEC 60641-3-1:1992.B.3.1.
Applications
Electrical Insulation Transformer Pressboard is suitable for:
- Power transformer insulation
- Distribution transformer insulation
- Transformer internal insulation components
- Corrugated insulation boards
- Transformer insulation cylinders
- Transformer insulation rings
- Mouldable insulation parts
- Electrical insulation applications requiring processable cellulose pressboard
The pressboard is particularly useful where the material needs to be cut, punched, folded, or formed into specific insulation structures.
Why Buy from Order Bridge?
Order Bridge supplies electrical insulation pressboard for wholesale and industrial B2B requirements in Bangladesh.
We focus on:
- Competitive B2B pricing
- Bulk/wholesale supply
- Consistent product availability
- Reliable delivery
- Requirement-based sourcing
- Support for industrial and transformer-related buyers
If you are a transformer manufacturer, electrical equipment manufacturer, engineering company, distributor, or industrial buyer, share your required thickness, sheet size, and quantity with Order Bridge for a quotation.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Electrical Insulation Transformer Pressboard |
| Material | Pure cellulose / 100% sulfate pulp |
| Raw Material | Long-fibred coniferous wood pulp |
| Thickness | 0.8–30 mm |
| Standard Sheet Size | 1000 × 2000 mm |
| Alternative Sheet Size | 1000 × 1000 mm |
| Available Colour | Natural Brown, Red |
| Insulation Class | Class A |
| Rated Temperature | 105°C |
| Apparent Density | 1.00–1.20 g/cm³ for ≤1.6mm; 1.10–1.25 g/cm³ for >1.6–3.0mm; 1.15–1.30 g/cm³ for >3.0–6.0mm |
| Thickness Deviation | Max. ±7.5% for ≤1.6mm; Max. ±5.0% for >1.6–3.0mm |
| Tensile Strength — MD | Min. 100 MPa / 105 MPa / 110 MPa according to thickness range |
| Tensile Strength — CMD | Min. 75 MPa / 80 MPa / 85 MPa according to thickness range |
| Shrinkage — MD | Max. 0.5% |
| Shrinkage — CMD | Max. 0.7% |
| Moisture Content | Max. 6.0% |
| Ash Content | Max. 1.0% |
| Electrical Strength in Oil | Supplier specification: see thickness-dependent values below* |
| Aqueous Extract Conductivity | Max. 5.0 / 6.0 / 8.0 mS/m according to thickness range |
| Standard/Reference | GB/T 19264.3-2003 / IEC 60641-3-1:1992.B.3.1 |
| Main Applications | Power & distribution transformers and transformer insulation components |
Thickness-dependent supplier data:
| Property | ≤1.6 mm | >1.6–3.0 mm | >3.0–6.0 mm |
|---|---|---|---|
| Apparent Density (g/cm³) | 1.00–1.20 | 1.10–1.25 | 1.15–1.30 |
| Tensile Strength MD (MPa), Min. | 100 | 105 | 110 |
| Tensile Strength CMD (MPa), Min. | 75 | 80 | 85 |
| Aqueous Extract Conductivity (mS/m), Max. | 5.0 | 6.0 | 8.0 |
